GoodWe 10KW 3-Phase Hybrid Solar Inverter (GW10K-ET-L-G10)
Solar Inverter
Model ID: GOODWE-10KW-GW10K-ET-L-G10

GoodWe 10KW 3-Phase Hybrid Solar Inverter (GW10K-ET-L-G10)

Reliable 10kW three-phase hybrid inverter with low-voltage 48V battery storage

The GoodWe 10KW 3-Phase Hybrid Solar Inverter (GW10K-ET-L-G10) is built for buyers who want a three-phase hybrid inverter that can work with solar, battery storage, and grid power in one system. For Bangladeshi homes and projects that need steadier backup planning, that mix can make the system easier to manage when the grid is unstable. This ET LV series model is a strong fit if you are looking at a low-voltage battery setup and want a solution made for residential energy storage.

5-Year Manufacturer WarrantyOfficial Factory Backed
Tested & CertifiedZero Defect QC Passed

Engineering Key Features:

Three-phase hybrid design for balanced commercial & residential power handling
Low-voltage 48V battery integration for affordable, scalable energy storage
Matched for 10kW charging and 11kW discharging battery performance
Supports up to 200% PV array oversizing for maximum daytime energy yield
IP66 rugged enclosure for tough outdoor environments
Smart Fan Cooling and clear LCD interface with comprehensive monitoring

Recommended Applications:

Three-Phase Large Residential Homes & Luxury VillasCommercial Offices, Supermarkets & Medical ClinicsSolar + Battery Hybrid Microgrids
Technical Data Sheet

Full Technical Specifications

Verified laboratory parameters measured under standard testing conditions (STC).

Specifications Matrix

ISO / IEC Standards
rated Power
10kW Nominal AC Power / 11.0kVA Max Apparent Power
phase
Three-Phase (400/380V, 3L/N/PE)
battery Voltage
48V Nominal (40~60V Range) LFP / Lead-acid
charge Discharge Power
Max Charge: 10kW | Max Discharge: 11.0kW
max Input Power
20kW (Up to 200% PV Oversizing)
mppt Trackers
3 MPPTs (20A / 20A / 20A Max Current)
cooling
Smart Fan Cooling
Enclosure / Ingress Protection
IP66 (Outdoor-Rated)
Telemetry / BMS Communication
WIFI+LAN+Bluetooth, 4G, RS485, CAN (BMS)
Physical Dimensions (L x W x H)
756 x 551 x 258 mm (45.3 kg)
Operating Temperature Limits
-35°C to +60°C
Standard Manufacturer Warranty
5-Year Manufacturer Warranty
Alternative Options

Related Energy Systems in This Category

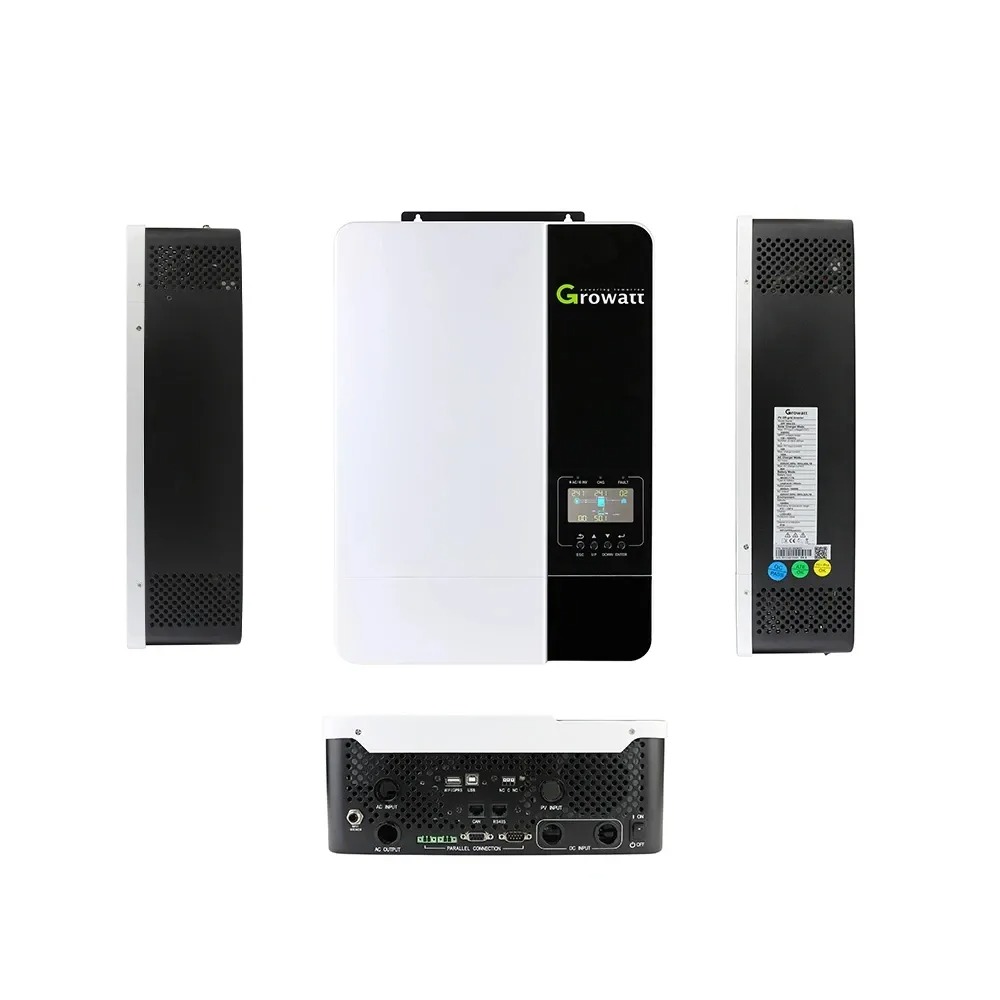

Growatt SPF 3500 ES 3.5KW 48V Off Grid Hybrid Solar Inverter
Solar Inverter
2 Yr Warranty

Growatt SPF 3500 ES 3.5KW 48V Off Grid Hybrid Solar Inverter

3500W pure sine wave off-grid hybrid solar inverter with integrated 80A MPPT, 450VDC max PV input, 48V battery support, and parallel capability.

Key Specifications
3500VA / 3500W (Surge: 7000VA)48VDC (Lithium / Lead-acid Compatible)Pure Sine Wave (230VAC ±5% @ 50/60Hz)
Solis 6kW Single Phase Hybrid Solar Inverter (S6-EH1P6K-L-PLUS)
Solar Inverter
5 Yr Warranty

Solis 6kW Single Phase Hybrid Solar Inverter (S6-EH1P6K-L-PLUS)

6kW single-phase hybrid solar inverter with 96.2% efficiency, dual MPPTs, 40-60V battery support, IP66 enclosure, and natural convection cooling.

Key Specifications
6kW Rated Output Power40–60V Low-Voltage Battery Support2 MPPTs (Up to 21A per MPPT)

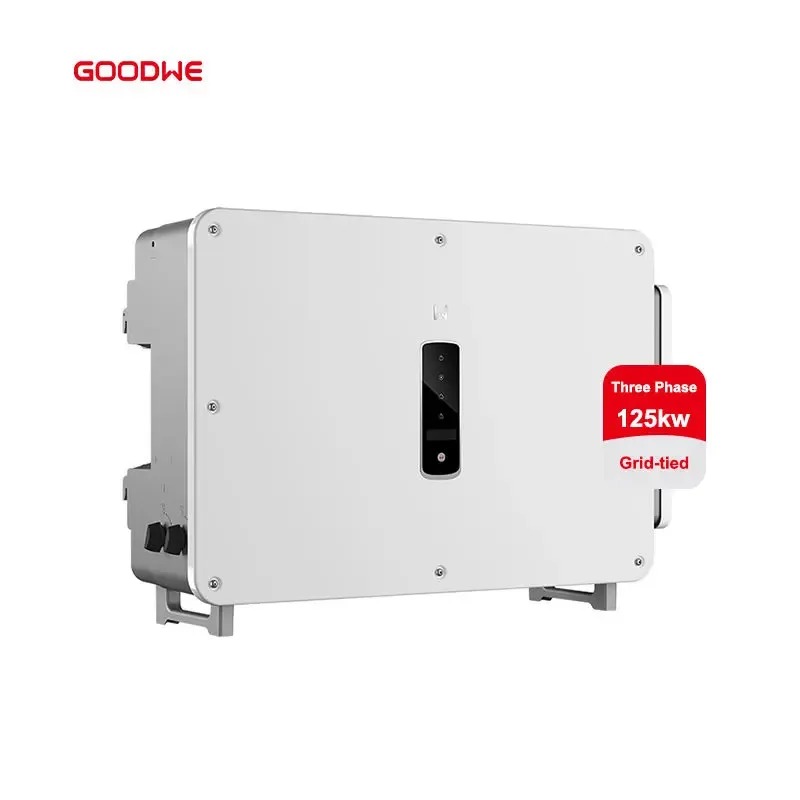

GoodWe 125KW 3-Phase ON-GRID Solar Inverter (GW125K-GT)
